MR – P 350

The MR-P 350 is a crawler piling rig designed to perform bored piles with Kelly Bar system. The compact dimensions and the remarkable power of the MR-P 350 allow to realize piles up to 1200 mm (47.2 in) in diameter with max. depth of 18 m (59 ft).

  • Engine Power: 55 Kw

    Max Drilling depth: 18 mt

    Max Drilling diameter: 1200 mm

    Weight: 9000 Kg

MR – P 400

The new MR-P 400 is a crawler drilling rig for the execution of bored piles with the Kelly Bar system and CFA piles. The design with long reach while maintaining the compact dimensions, make this machine unique in its kind. Equipped with the new electronic management system (M-Tronic), the MR-P 400 can perform piles up to 1200 mm (47.2 in) in diameter with max. of 27 m (88.5 ft) in kelly bar mode and CFA piles of diameter 750 mm (29.5 in) with max. depth of 11 m (36 ft).

  • Engine Power: 55 kW

    Max diameter - Kelly bar: 450-1200 mm (below mast) 450-850 mm (front mast)

    Max depth - Kelly bar: 27 m (9 elements) 22 m (7 elements)

    Max CFA diameter: 750 mm

    Max CFA depth: 11 m

    Weight in Kelly Bar configuration: 16.300 Kg

    Weight in CFA configuration17.500 Kg

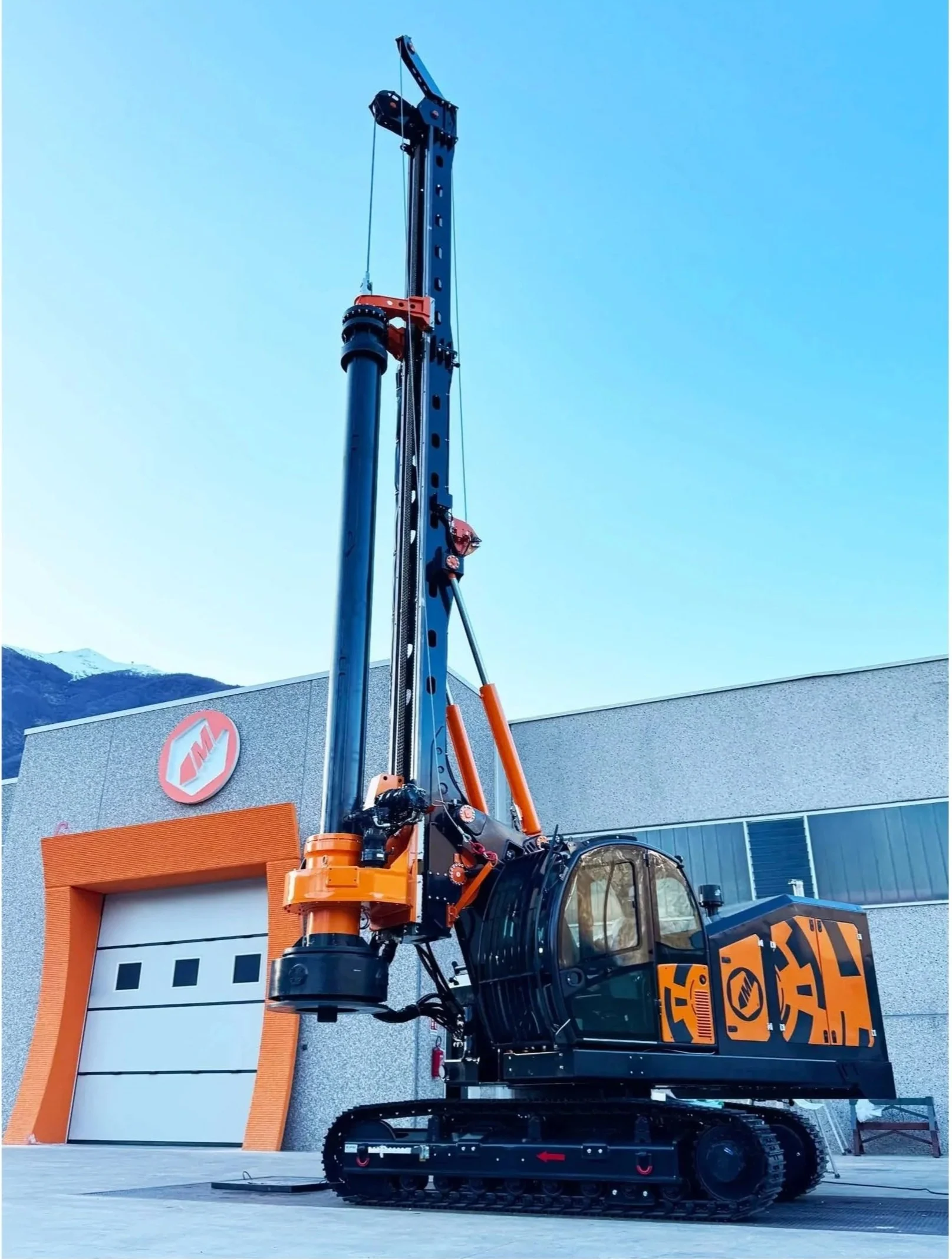

MR – P 750

The latest addition but also the highest performing, the MR-P 750 is the ultimate borehole and CFA pile-drilling unit. With its 4 different configurations-CPD (Cylinder Pull Down), MPD (Motor Pull Down), LH (Low Headroom) and CFA (Continuous Flight Augers)-this machine is perfect for the most demanding foundation applications. With an operating weight ranging between 28 and 30 tons, the MR-P 750 stands out in the market for its robustness, power and versatile configurations, offering high performance in all types of operations.

  • Engine Power: 103 kW

    Max diameter - Kelly bar: 1200 mm

    Max depth - Kelly bar: 32 m

    Max CFA diameter: 1000 mm

    Max CFA depth: 16.5 m

    Weight in Kelly Bar configuration: 28.300 Kg

    Weight in CFA configuration: 27.500 Kg
