MR - A MCDP & MR - A MCDP 80x80

The MR - A MCDP & MR - A MCDP 80x80 pneumatic mast attachment is suitable to mount on light self-propelled and with insufficient hydraulic oil. Can be equipped with rotary head and separate roto-percussion drifter.

  • Excavator Range: 1 -1.5 Ton.

    Retract Force : 950 - 1250 daN

    Weight: 200-350 Kg

MR - A 80 COMPACT

The MR - A 80 COMPACT hydraulic drilling unit is suitable for mounting on small - medium self-propelled and with an auxiliary hydraulic oil circuit. Can be equipped with rotary head and separate roto-percussion drifter. The COMPACT version differs in its compactness and versatility in positioning, the control of the mast is performed by radio remote control.

  • Excavator range: Over 5 Tons

    Retract force: 1000 daN

    Max Clamp Passage: 115 mm

    Weight: 500 - 700 Kg

MR - A 120

The MR - A 120 hydraulic mast attachment is suitable to mount on medium-big self-propelled and with an auxiliary hydraulic oil circuit. Can be equipped with rotary head and separate roto-percussion drifter

  • Excavator Range: Over 10 Tons

    Retract Force: 2500 daN

    Max Clamp Passage: 188 mm

    Weight: 1100 - 1800 Kg

MR - A 300

The MR - A 300 hydraulic mast attachment is suitable to mount on big self-propelled and with an auxiliary hydraulic oil circuit. Can be equipped with rotary head and separate roto-percussion drifter.

  • Excavator Range: Over 18 Tons

    Retract Force: 5000 daN

    Max.Clamp Passage: 310 mm

    Weight: 2500 - 3500 Kg

MR - A PN

The MR - A PN pneumatic mast attachment is suitable to mount on small-medium self-propelled. Can be equipped with rotary head and separate roto-percussion drifter.

  • Excavator Range: 8 Ton

    Retract Force: 2500 daN

    Weight : 700 - 1300 Kg

MR - A 100

The MR - A 100 hydraulic mast attachment is suitable to mount on medium-small self-propelled and with an auxiliary hydraulic oil circuit. Can be equipped with rotary head and separate roto-percussion drifter. The controls are done by separate manual control panel that can be positioned on the excavator.

  • Excavator Range: Over 4 Tons

    Retract Force: 1500 daN

    Max Clamp Passage: 188 mm

    Weight: 500 - 800 Kg

MR - A 150

The MR - A 150 hydraulic mast attachment is suitable to mount on medium-big self-propelled units and with an auxiliary hydraulic oil circuit. Can be equipped with rotary head, double rotary head and separate roto-percussion drifter

  • Excavator range: Over 15 Tons

    Retract Force: 2500 daN

    Max Clamp Passage: 188 mm

    Weight: 1300 - 2000 Kg

MR - A 500

The MR - A 500 hydraulic mast attachment is suitable to mount on big self-propelled and with an auxiliary hydraulic oil circuit. Can be equipped with rotary head and separate roto-percussion drifter.

  • Excavator Range: 25 Ton

    Retract Force: 6000 daN

    Max Clamp Passage: 310 mm

    Weight: 3500 - 4500 Kg

MR - A 80

The MR - A 80 hydraulic mast attachment is suitable to mount on light self-propelled and with an auxiliary hydraulic oil circuit. Can be equipped with rotary head and separate roto-percussion drifter. The controls are done by separate manual control panel that can be positioned on the excavator.

  • Excavator Range: 2 Ton

    Retract Force: 1000 daN

    Max Clamp Passage: 115 mm

    Weight: 300 - 500 Kg

MR - A 100 COMPACT

The MR - A 100 COMPACT hydraulic drilling unit is suitable for mounting on small - medium self-propelled and with an auxiliary hydraulic oil circuit. Can be equipped with rotary head and separate roto-percussion drifter. The COMPACT version differs in its compactness and versatility in positioning, the control of the mast is performed by radio remote control.

  • Excavator Range: Over 8 Tons

    Retract force: 1500 daN

    Max Clamp Passage: 188 mm

    Weight: 800 - 1100 Kg

MR - A 250

The MR - A 250 hydraulic mast attachment is suitable to mount on big self-propelled and with an auxiliary hydraulic oil circuit. Can be equipped with rotary head and separate roto-percussion drifter.

  • Excavator Range: 15 Tonne

    Retract Force: 3500 daN

    Max Clamp Passage: 188 - 230 mm

    Weight: 1800 - 2300 Kg

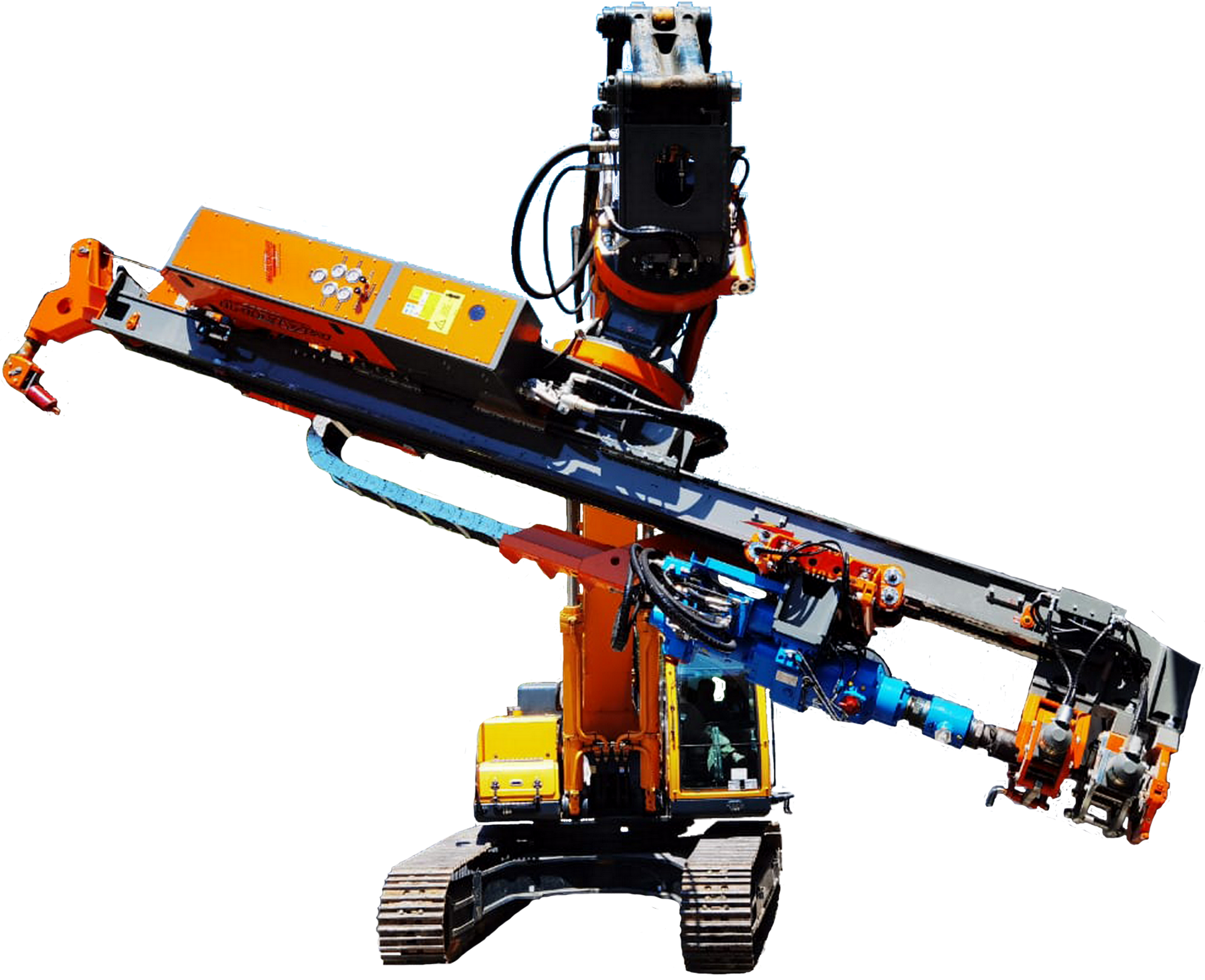

MR - A 800

The MR - A 800 hydraulic mast attachment is suitable to mount on big self-propelled and with an auxiliary hydraulic oil circuit. Can be equipped with rotary head and separate roto-percussion drifter.

  • Excavator Range: Over 30 Tons

    Retract Force: 8000 daN

    Max Clamp Passage: 520 mm

    Weight: 5500 - 7000 Kg
