MR-1

The MR - 1 pneumatic drilling unit is the ideal machine on extremely sloping and irregular work surfaces. Can be equipped with light (30 kg) roto-percussion drifter

  • Retract Force: 600 DaN

    Weight: 190 kg

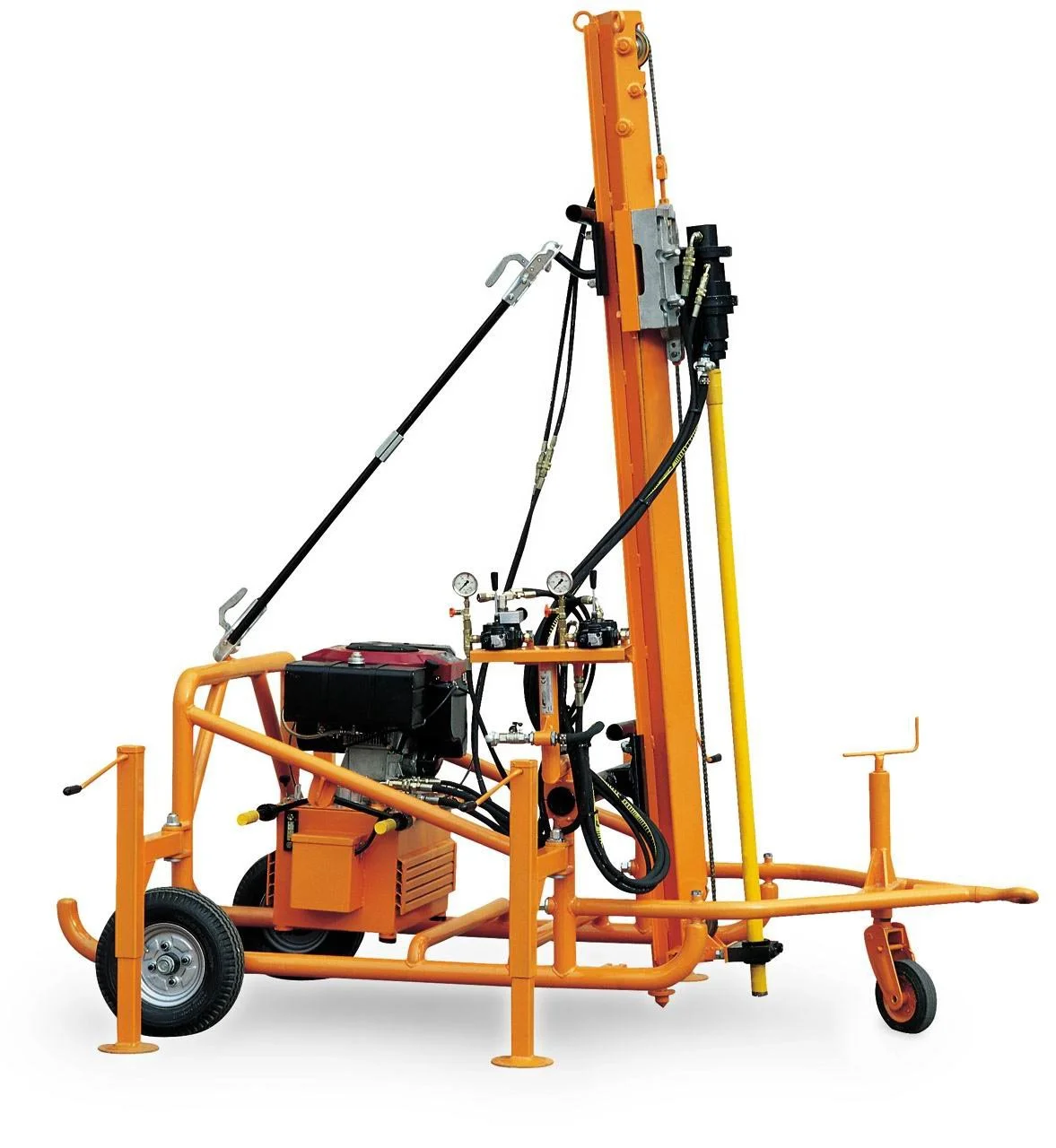

MR-3

The MR - 3 hydraulic drilling unit, which is equipped with hydraulic power pack, is patented for drilling on linear work surfaces. Born primarily for the coring sector, it is however also suitable for rotary head and separate roto-percussion drifter.

  • Power Pack Engine: 15-17-22 Kw

    Retract Force: 1000-1500 DaN

    Max Clamp Passage: 115-188 mm

    Weight: 450-650 kg

MR-5 ID

The MR - 5 ID hydraulic drilling unit, which is equipped with hydraulic power pack, is patented for drilling on linear work surfaces. Can be equipped with rotary head and separate roto-percussion drifter.

  • Power Pack Engine: 15 - 17 - 22 Kw

    Retract Force: 1000 - 1500 daN

    Max Clamp Passage: 115 - 188 mm

    Weight: 700 - 1000 Kg

MR-2 PN

The MR - 2 PN pneumatic drilling unit is used on very inclined work surfaces. Can be equipped with a rotary head or a separate roto-percussion drifter.

  • Retract Force: 950 - 1250 daN

    Weight: 300 - 370 Kg

MR-4

The MR - 4 hydraulic drilling unit complete of power pack, is used on inclined work surfaces. Can be equipped with rotary head or separate roto-percussion drifter

  • Power Pack Engine: 15-17-22 Kw

    Retract Force: 1000-1250 DaN

    Max Clamp Passage: 115-188mm

    Weight: 700-900 + 250 Kg

MR-2 ID

The MR - 2 ID Hydraulic drilling unit complete of power pack, is used on very inclined work surfaces. Can be equipped with a rotary head or a separate roto-percussion drifter.

  • Power Pack Engine: 15-17-22 Kw

    Retract Force: 1000-1500 DaN

    Max Clamp Passage: 115-188mm

    Weight: 380-650 Kg

MR-5 PN

The MR - 5 PN pneumatic drilling unit, which is equipped with hydraulic power pack, is patented for drilling on linear or slightly inclined work surfaces. Can be equipped with rotary head and separate roto-percussion drifter.

  • Retract Force: 950 - 1250 daN

    Weight: 350 - 450 Kg

DOWNLOAD PRODUCT CATALOGUES

To download catalogues for any of these products please enter your email and you will be redirected to a page where you can find more information on these products.
